AMNVOLT V3 ATS MINI SI4732 DSP Radio with Superior Audio & Build Quality

Features:

• Superior Audio Quality: 1W high-quality speaker with a dedicated headphone amplifier circuit ensures clear sound without muffling.

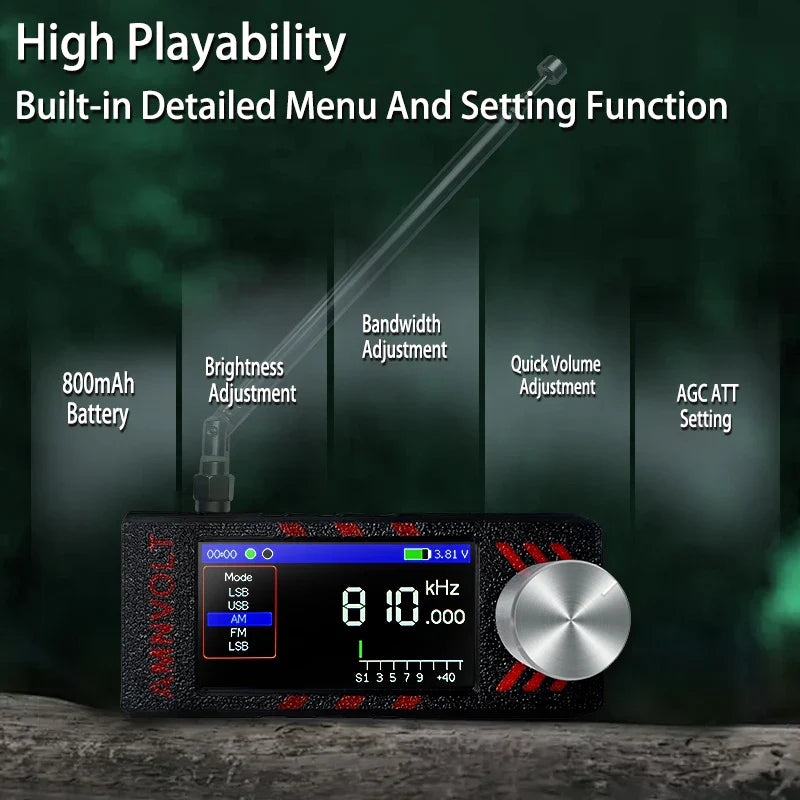

• Authorized Firmware: Enjoy enhanced features like adjustable screen brightness and real-time battery level monitoring. Update the firmware yourself easily.
• Premium Build Quality: Equipped with a genuine SI4732 DSP chip, 800mAh battery with safe Type-C charging, ensuring durability and reliability.
• Build-in Hi-Z Circuit: Excellent design enhances weak signal resolution.

Technical Details:

• MCU: ESP32-S3
• Screen: 1.9" IPS HD (170x320 resolution)
• Modes: AM/FM/LSB/USB
• Frequency Ranges: LW/MW/SW: 150kHz - 30MHz, VHF: 64MHz - 108MHz
• Charging: Type-C (5V standard only)
• Battery: 800mAh
• Audio Interface: 3.5mm stereo
• Antenna Port: SMA-KE

Package Includes:

• 1 x AMNVOLT ATS MINI V3 SI4732 Radio

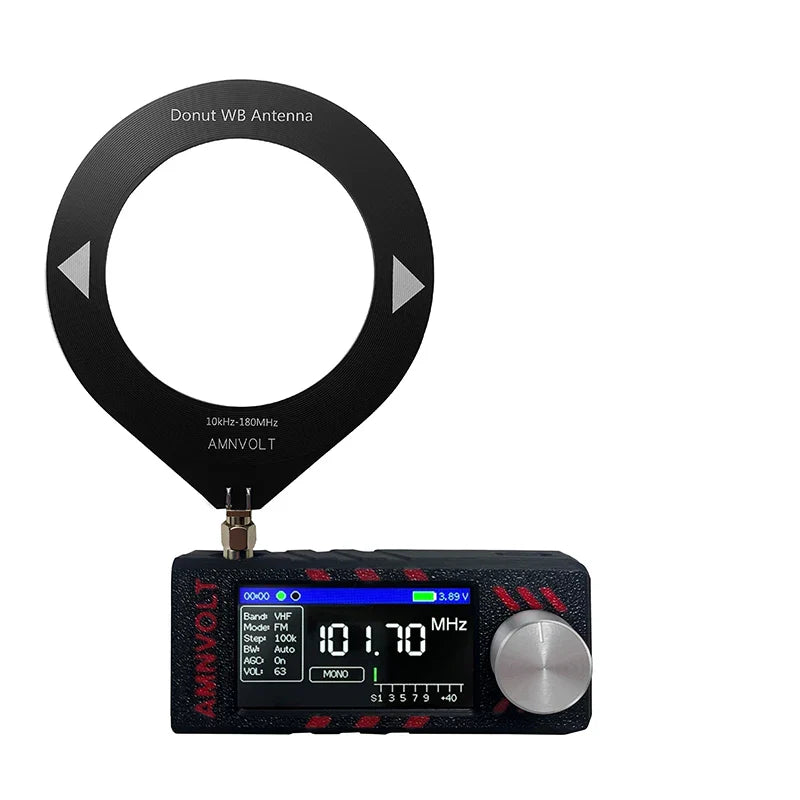

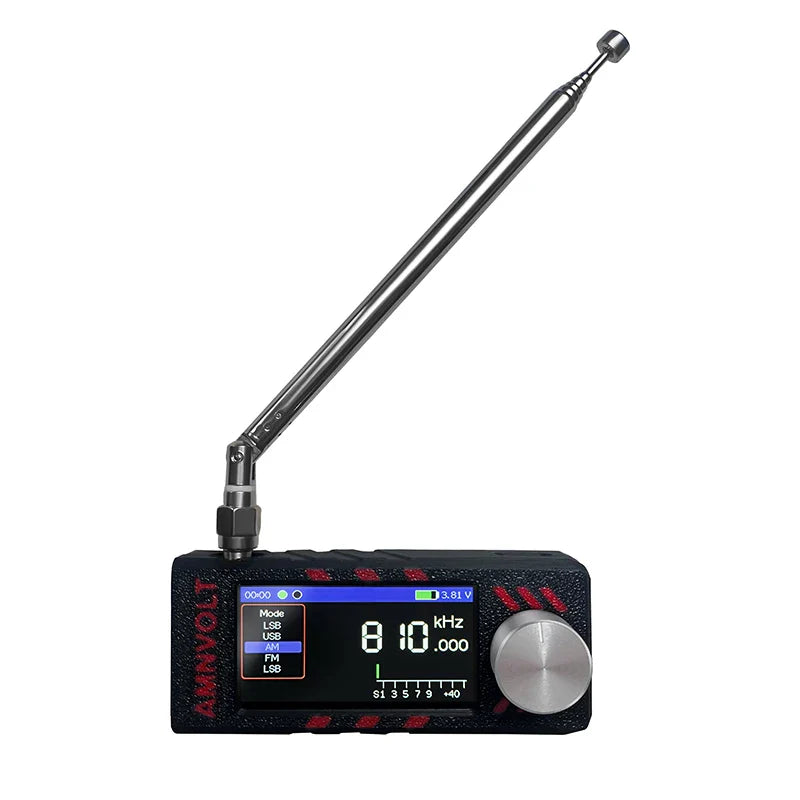

• 1 x Antenna (Telescopic or Loop antenna)

Warnings and Reminders:

• Each package contains only one type of antenna, either circular or telescopic. Choose carefully.
• Do not press the encoder forcefully to avoid damage.
• Be aware that the built-in Hi-Z circuit may increase power consumption.
• The antenna provided is for entry-level use; consider acquiring a better one for enhanced reception.
• The battery is not fully charged upon delivery to ensure transportation safety.
